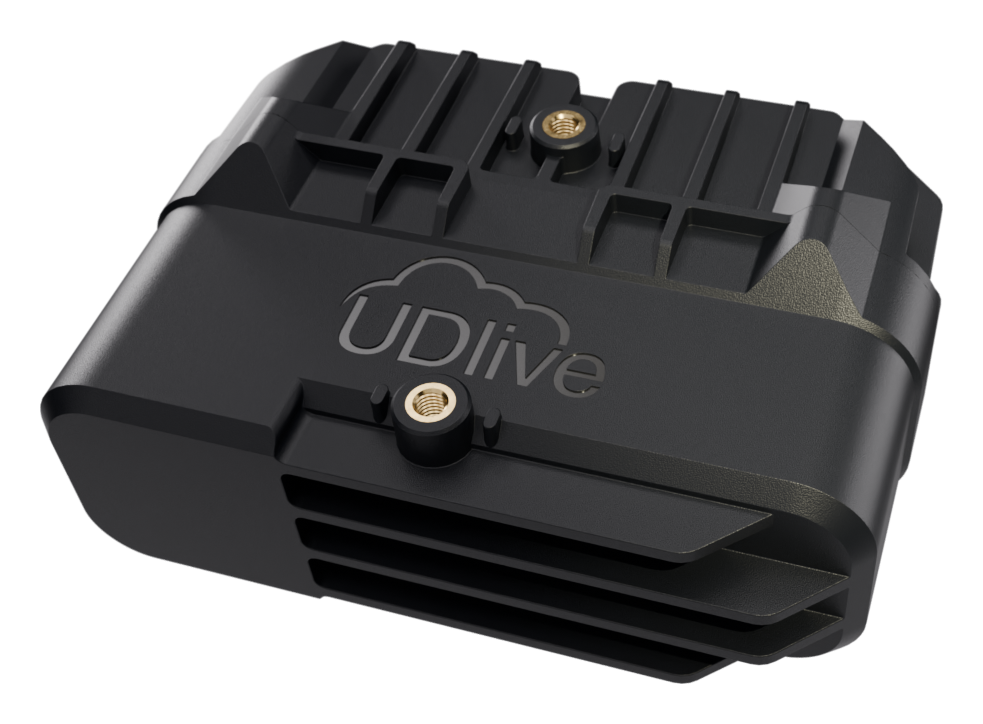

Image of UDlive Pixel II Gully radar drainage sensor

UDlive Pixel II Gully

Water Level and Blockage Monitoring

UDlive's Pixel II Gully sets a new benchmark in radar sensing for surface water drainage monitoring. Designed to measure gully water and silt levels with exceptional accuracy, it also detects grate obstructions — all within a compact, low-power form factor that delivers outstanding value.

FMCW radar with 1mm accuracy, 3m range, no dead zone

Ambient light sensor detects grate blockages and leaf build-up

Temperature sensor for ice formation early warning

4G LTE, LPWAN, satellite & Sub-GHz dual-path communications

Long-life lithium primary cells tested across tens of thousands of units

IP68, -20°C to +70°C, durable PBT/PC housing

For more information on how UDlive Pixel II Gully can transform your drainage monitoring and maintenance operations.

Contact UDlive Now

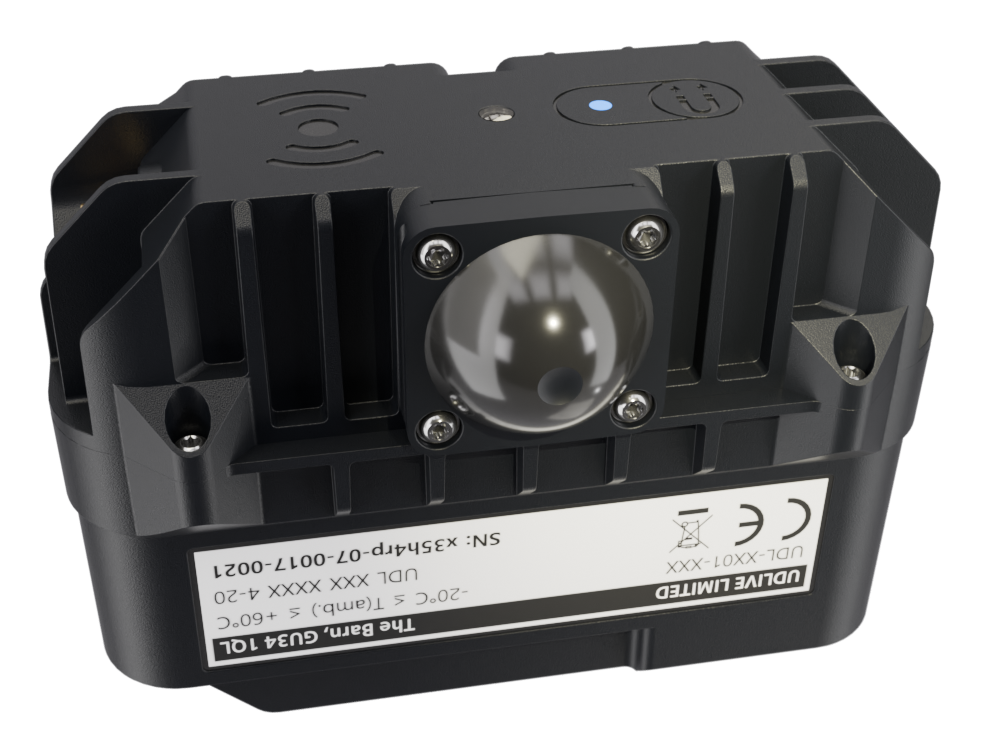

UDlive Pixel II Gully sensor showing the radar lens and product label.

Precise Radar Sensing

With a narrow radar beam, extended range, and advanced signal processing, the Pixel II Gully provides highly reliable and precise readings, even in challenging urban gully environments. The same proven FMCW technology used in the Pixel XT, purpose-built for drainage.

Range: 0–3m measuring range with no dead band for accurate water level readings from surface to sensor.

Resolution: 1mm resolution for precise water level measurement and silt indication up and downstream.

Narrow Beam: FMCW radar with < 4° beam angle (+/- 2°) minimises interference from gully walls and structures.

Silt Build-up Estimation: Multi-point measurement tracks sedimentation over time, providing visibility of flood risk and silt accumulation trends.

For more information on how the Pixel II Gully's class-leading radar can deliver precise drainage monitoring.

Contact UDlive Now

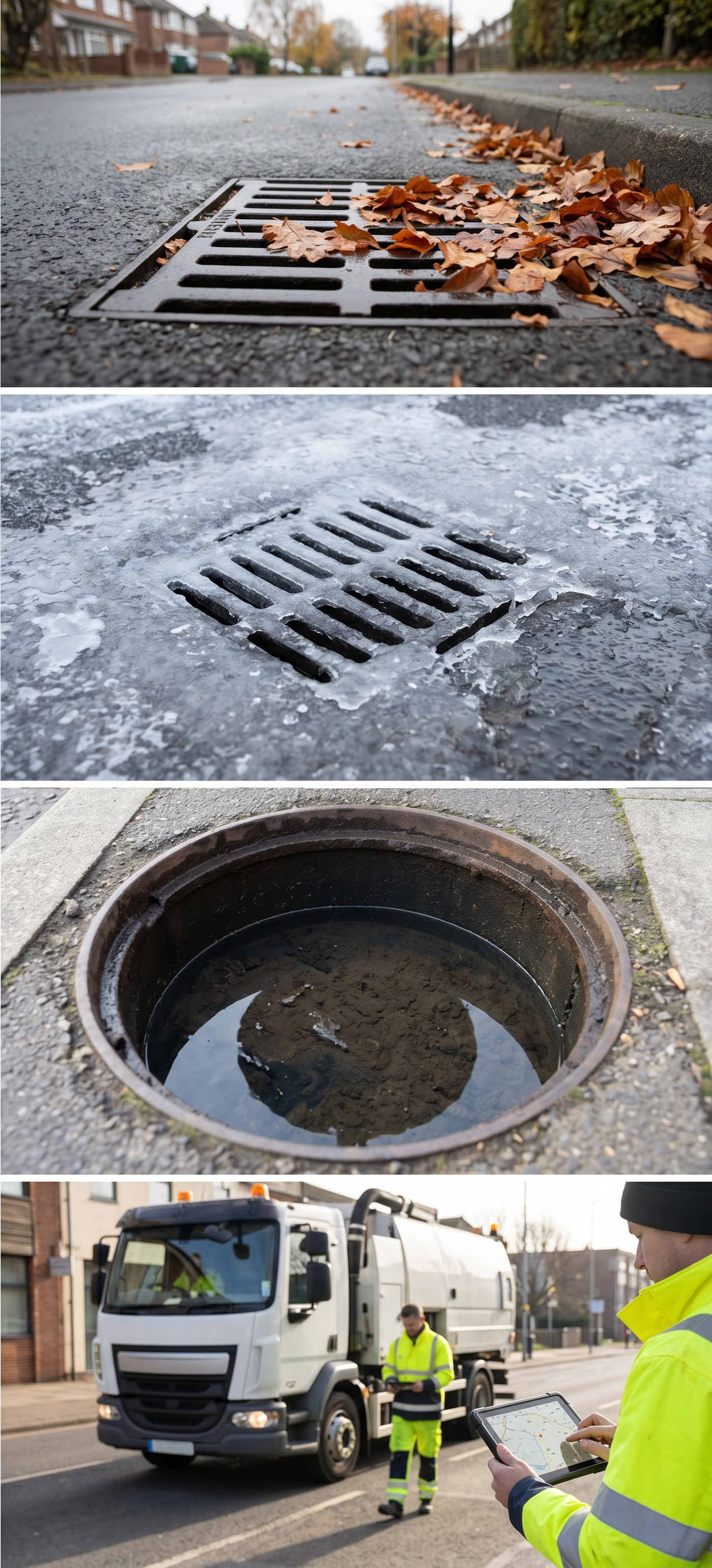

Four scenarios showing leaf blockage on a gully grate, silt build-up, ice formation, and a maintenance crew with tablet.

Blockage & Environmental Sensing

Beyond water level, the Pixel II Gully continuously monitors ambient light and temperature. When leaf build-up or debris covers the grate, the ambient light sensor detects the dimming — providing early blockage detection without the need for visual inspection. In winter, the temperature sensor provides early warning of potential ice formation, enabling proactive intervention.

Grate Obstruction Detection

Ambient light sensor detects leaf build-up and debris covering the grate. Dimming light levels indicate increasing blockage, triggering alerts before flooding occurs.

Water Level & Sedimentation

Radar tracks water level and silt accumulation in real-time, providing contemporary sedimentation data that reduces flood risk and supports visibility of temporal trends.

Ice Formation Warning

Integrated temperature sensor provides early warning of potential ice formation in winter months, enabling proactive intervention to reduce risk.

Optimised Cleansing Schedules

Data-driven optimisation of gully cleansing schedules enables cyclic and reactive maintenance, helping local authorities prioritise high-risk locations and reduce operational costs.

Discover how the Pixel II Gully's multi-parameter sensing can help you detect blockages before they cause flooding.

Contact UDlive Now

Screenshot of UDlive Portal showing gully sensor data and analytics.

Connected & Portal-Ready

Data is continuously fed to the UDlive Portal where it can be accessed, analysed, and managed remotely. Users can set automatic alerts, collect data via API, or forward data by MQTT to other platforms. Compatible with CatsEye II RTU and CatsEye II Pixel II for unified monitoring.

Seamless Portal Integration: Automatic alerts, custom scheduling, historical data analysis, and API/MQTT forwarding — all from the UDlive Portal.

Dual-Path Communications: 2G/3G/4G, LPWAN (LTE-M1, NB-IoT), satellite, and Sub-GHz radio options with dual-path redundancy.

Encrypted & Secure: aes256 symmetrical encryption ensures secure data transfer from sensor to cloud.

Learn how UDlive Pixel II Gully integrates with the UDlive Portal for powerful drainage insights.

Contact UDlive Now

Built for the Field

Engineered for "install and forget" reliability in the harshest gully environments. Ultra low power consumption with near-immediate warm-up times and durable, redeployable construction.

Long Life

Ultra-long-life lithium thionyl chloride primary cells with near-immediate warm-up times. Proven across tens of thousands of deployed units.

Easy Installation

Multiple bracket options and ultra compact design simplifies installation as a retrofit, plug-and-play device. No confined entry required.

Redeployable

Durable PBT/PC housing specially designed for challenging gully environments. Redeployable across sites, reducing e-waste and extending asset life.

Remote Management

Over-the-air firmware updates and remote configuration minimise site visits, reducing operational costs and CO2 emissions.

For more information on how UDlive Pixel II Gully can reduce your maintenance costs and carbon footprint.

Contact UDlive Now
